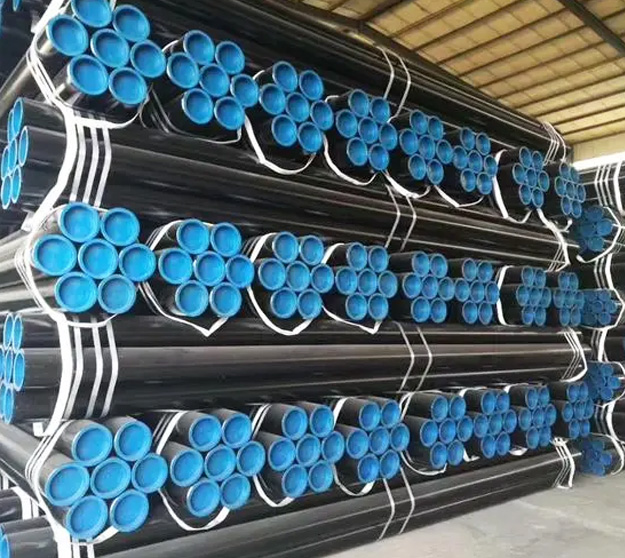

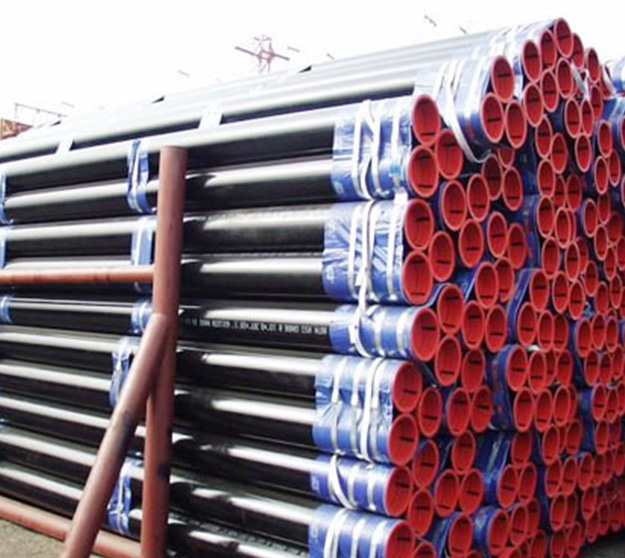

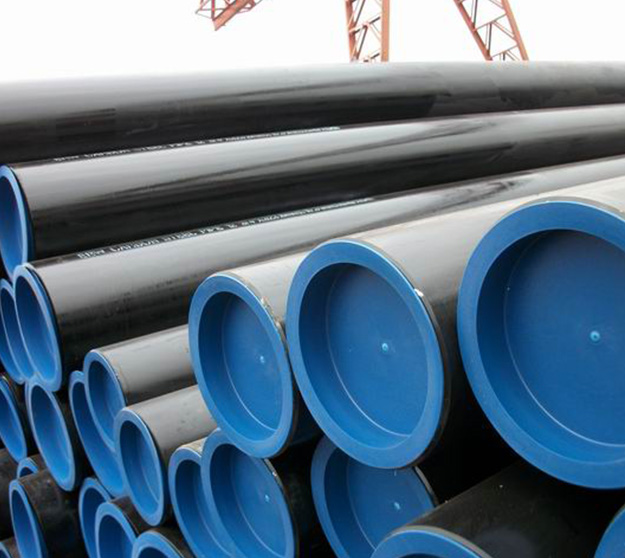

API 5L X60 Line Pipe
API 5L X60 Line Pipe
API 5L X60 Line Pipe

API 5L X60 Line Pipe

• Resistance ability to stress corrosion cracking

• High tensile and yielding strength

• Perfect dimensional accuracy

• Smooth surface finish

Send Message

Introduction

• Resistance ability to stress corrosion cracking

• High tensile and yielding strength

• Perfect dimensional accuracy

• Smooth surface finish

• General corrosion resistance

• Sturdy construction

• Ability to hold high temperature

• Resistance to pitting, oxidation



X60 API 5L Carbon Steel Line Pipes Application Industries

• Petrochemical Industry

•Chemical Industry

•Oil and Gas Industry

•Pulp & Paper Indusry

•Power Plant Industry

•Food Processing Industry

•Pharmaceuticals Industry

•Energy Industry

•Aerospace Industry

Chemical and Mechanical of API 5L X60 Line Pipe

PSL 1
GRADE Chemical Composition Mechanical Property
C (Max) Mn (Max) P (Max) S (Max) TENSILE ( Min ) YIELD ( Min )
Psi X 1000 Mpa Psi X 1000 Mpa
X60 0.26 1.4 0.03 0.03 75 517 60 415



PSL 2
Grade Chemical Composition Mechanical Property
C Mn P S Tensile Yield C. E. IMPACT ENERGY
(Max) (Max) (Max) (Max)
Psi x 1000 Mpa Psi x 1000 Mpa PCM IIW J FT/LB
X60 0.22 1.4 0.025 0.015 75 - 110 517 - 758 60 - 82 415 - 565 0.25 0.43 T/L 27/41 T/L 20/30
