Color coated coils are mainly used in building, transport, home appliances, solar energy, furniture. Especially in home appliances, the sheets are mainly used as the side door plate of  refrigerators,and air conditioners, freezers, and washing machine.

Send Message

Introduction

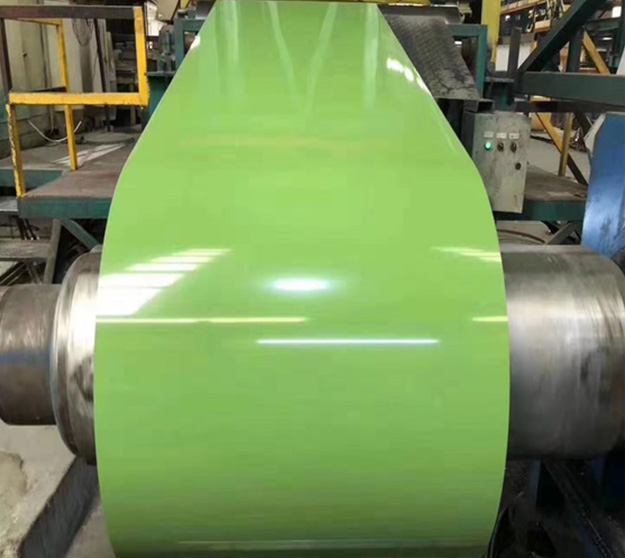

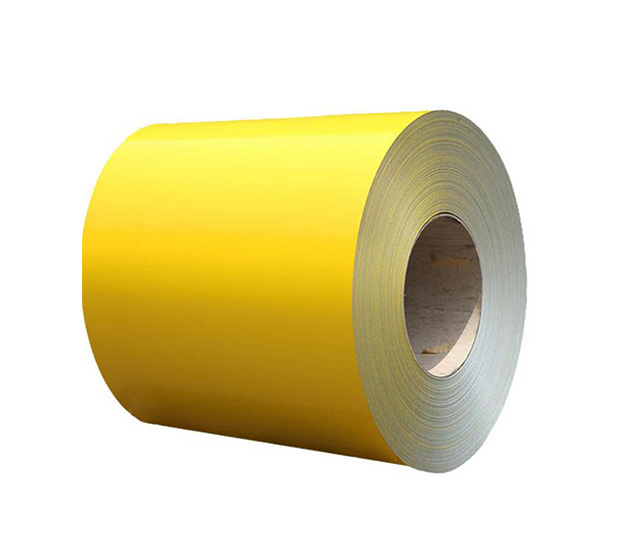

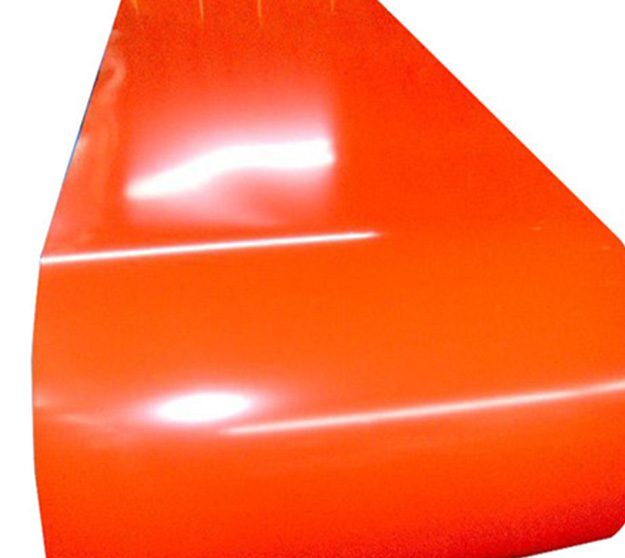

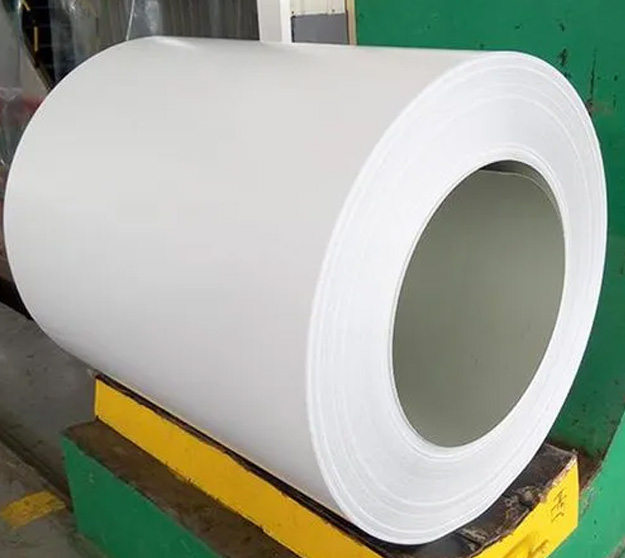

Color coated coils are mainly used in building, transport, home appliances, solar energy, furniture. Especially in home appliances, the sheets are mainly used as the side door plate of  refrigerators,and air conditioners, freezers, and washing machine. Using galvanized sheets or galvalume sheet as the substrate, color coated sheet is made by first going through surface pretreatment, then coating for one or more layers, and funally baking and cooling.

Technical data

Commodity  Prime Quality PPGI Steel Coil
Grade  Q195, Q235
SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570
SGHC SGH340 SGH400 SGH440 SGH490 SGH540
DX51D DX52D DX53D DX54D
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
Availble Forms Coil, Sheet, Strips, etc.
Standard  GBT12754-2006 Q/BQB440 JISG3312  EN10169-2010  ASTM A755
Surface Type  Wooden, Stone, High Glossy, Film, Wrinkled, Embossed, Camouflage, Printing, White Board
Paint PE, SMP, HDP, PVDF
Hardness  Softy, Half Hard and Hard Quality
Thickness 0.12-5.0 mm
Width 90-1500 mm
Supply Ability 40000 MT/Month
Coil Weight  3-8 MT/Coil or as Your Requirment
MOQ 5 MT
Packaging  Export Standard Seaworthy Packaging
ID 508mm or 610mm
Technical Parameters Color Coating: Maximum 30um/25um (Top Side/Back Side )
T Bend: 0T 1T 2T 3T
Glossy: High, Medium, Low
Impact: 9J 12J
Pencil Hardness: 3H
MEK: 100 times
Salt Spray Test: 5000 hours
UV Test: 3500 Hours
Related Product We Can Provide Hot Dipped Galvanized Steel Coil
Hot Dipped Galvalume Steel Coil
PPGI Prepainted Galvanized Steel Coil
PPGL Prepainted Galvalume Steel Coil
Roofing Sheet
Corrugate Steel Sheet
Trade Term FOB, CFR, CIF
Payment Terms  T/T, L/C at sight, West Union, D/P, D/A, Paypal
Delivery Time 10-20 Days After Confirmed Order
Loading Port Tianjin, Qingdao and Shanghai Port
Container Size 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Length)x2352mm(Width)x2698mm(High)
