Adopt standard: S690Q steel EN 10025-6
Sell steel grade: S690Q steel plate, S690QL steel plate, S690QL1 steel plate

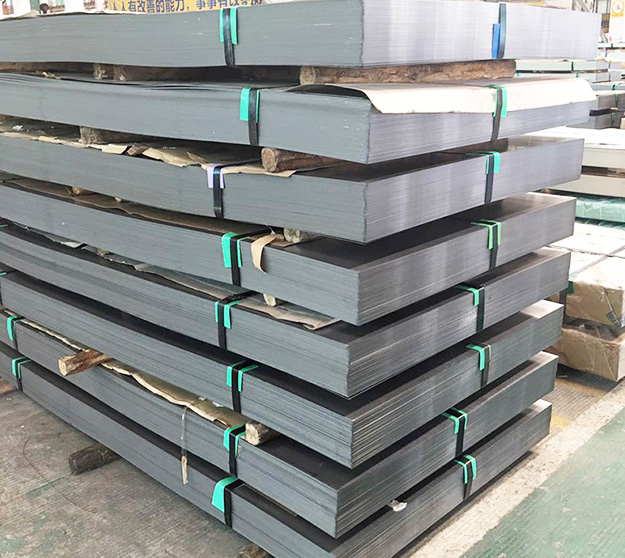

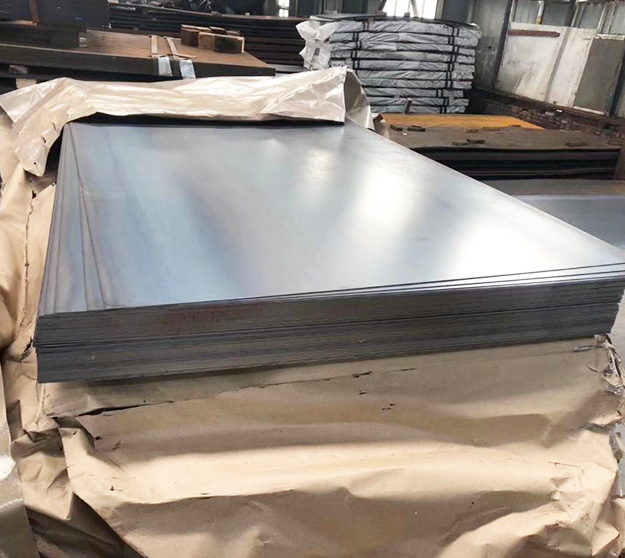

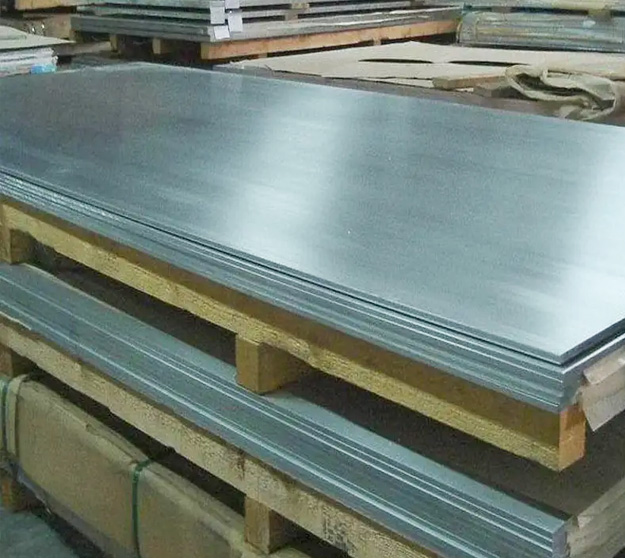

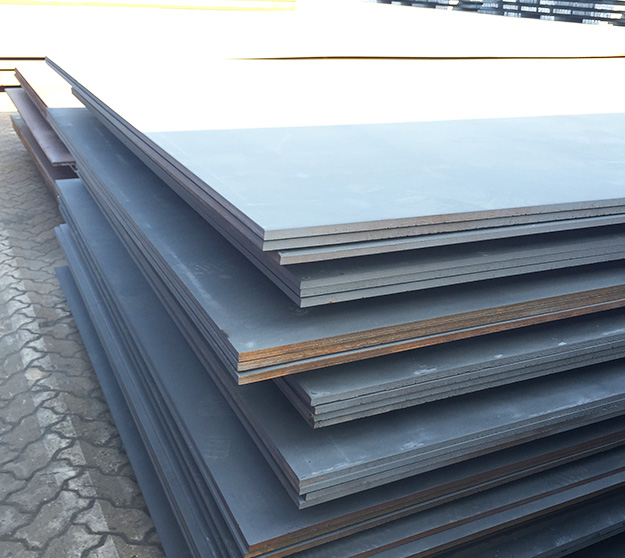

S690Q steel plate
S690Q is high yield strength structural steels grade in the quenched and tempered.
The symbol S is structural steel, 690 for the minimum yield strength in thickness under 50mm.
The Symbol Q mean the delivery condition in quenched and tempered.
S690q could be through the -20 temperature impact and the energy is 30J.
Adopt standard: S690Q steel EN 10025-6
Sell steel grade: S690Q steel plate, S690QL steel plate, S690QL1 steel plate
S690Q steel plate
S690Q is high yield strength structural steels grade in the quenched and tempered.
The symbol S is structural steel, 690 for the minimum yield strength in thickness under 50mm.
The Symbol Q mean the delivery condition in quenched and tempered.
S690q could be through the -20 temperature impact and the energy is 30J.
| EN10025-6 S690Q quenched and tempered steel plate Chemical composition | ||||||||
| Grade | C % | Si % | Mn % | P % | S % | N % | B % | Cr % |
| S690Q | 0.2 | 0.8 | 1.7 | 0.025 | 0.015 | 0.015 | 0.005 | 1.5 |
| Cu % | Mo % | Nb % | Ni % | Ti % | V % | Zr % | ||
| 0.5 | 0.7 | 0.06 | 2 | 0.05 | 0.12 | 0.15 | ||
| EN10025-6 S690Q quenched and tempered steel plate mechanical properties | ||||||
| Grade | Thickness | Min Yield | Tensile | Elongation | Min Impact Energy | |
| S690Q | 8mm-50mm | Min 690Mpa | 770-940Mpa | 14% | -20 | Min 30J |
| 51mm-100mm | Min 650Mpa | 760-930Mpa | 14% | -20 | Min 30J | |
| 101mm-150mm | Min 630Mpa | 710-900Mpa | 14% | -20 | Min 30J | |
